Description
Tripod Adapter Uses:
The Tripod Adapter is made from aluminum and can be used as an extension for an existing 1/4 inch mount. The adapter is used on the Digital Dowsing IR Light Rig to mount the Infrared Illuminators and a camera. The mounting adapter can be used on earlier model Xcam’s to accommodate for the recessed thread depth and to enable mounting on to a tripod. The adapter can be used to mount additional devices or to replace a lost adapter on the IR Light Rig.
The Tripod Mounting Adapter fits the following Digital Dowsing Products:

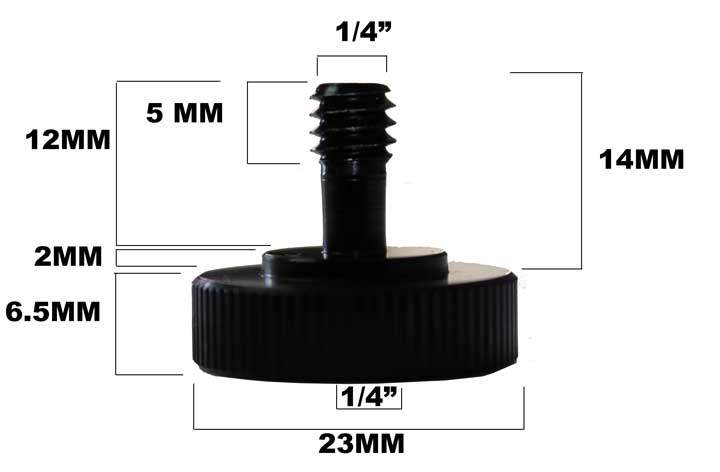

Tripod Adapter Dimensions
Tripod Adapter Details
- Material: Aluminum
- Color: Black
- 1/4″ female socket on the bottom to 1/4″ male adapter on the top
- Height: 20.5 MM
- Shaft Length: 12MM from smaller inner base
- Thread Depth: 5MM (both male and female)
- Shaft Diameter 4.5MM
